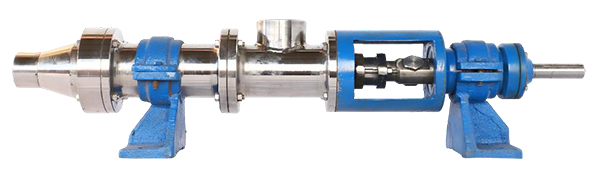

NOVA SERIES single screw eccentric progressive cavity pumps are the most universal and any additional options additional optional and configurations are available, such as made of stainless steel, explosion proof, with extra heat flow rectangular feeding inlet, screw feeder, the protection system,special climate versions, etc.
Type Of Design :
Horizontal
Pressure :
From 1 to 5 bar
Productive capacity :
O.1 to 60 Cubic Meters per Hour
Material Of Flow Part :
Industrial version of hard steel
Hygienic version AISI 314
Chemical version AISI 316
Sealing Of Drive Shaft :
Mechanical seal
Gland seal
Pumped Substances :
Any industrial liquid substances with different viscosity level, with or without
inclusions, including abrasive media: acids, bases, petroleum, acetone, resin
etc. The temperature of pumping fluid to 190 degree Celsius
